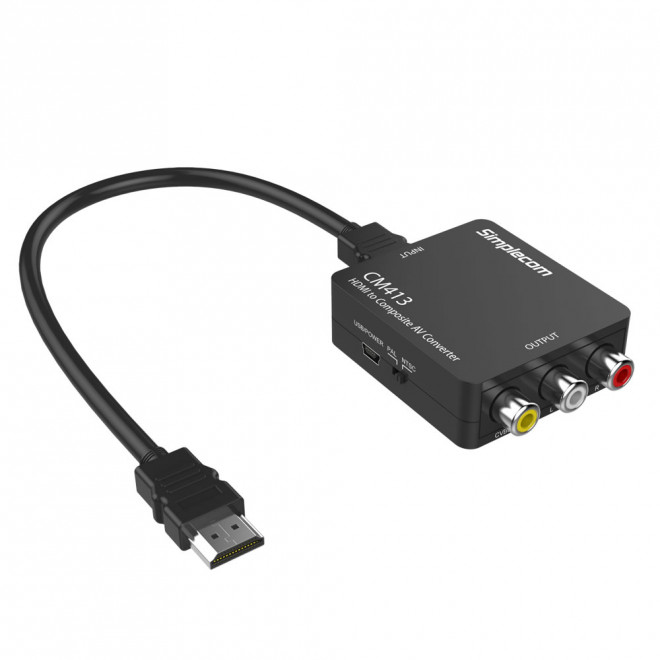

Simplecom CM413 HDMI to Composite AV CVBS 3RCA Video Converter 1080p Downscaling



SKU: CM413 Category:


Simplecom CM413 HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone, Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT TV, RPTV and projectors.


Support HDMI input from up to 1080p (Does Not support 3D)
HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
Supports NTSC and PAL two standard TV formats with a select switch
Hardware conversion, plug and play without any software driver
Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
With advanced video processing chip, for better compatibility and image quality
Self-powered by HDMI port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)
HDCP Compliant, support most HDCP HDMI output, e.g. Apple TV, Foxtel, and other Internet Streaming Box

Model: CM413
HDMI Version: 1.4, backward compatible with HDMI 1.1,1.2,1.3
HDCP Compliant: Yes
Support TV formats: NTSC and PAL
Inputs: HDMI x 1
Outputs: AV x 1; L / R x 1
HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS output: 480i, 576i
Dimensions : 55mm(W)x66mm(D)x 20mm(H)
Weight Converter : 40 gram
PAL and NTSC standard format selector switch
Package Contents

1 x CM413 HDMI to AV Converter
1 x USB Cable (for backup power source only)
1 x HDMI Lead
