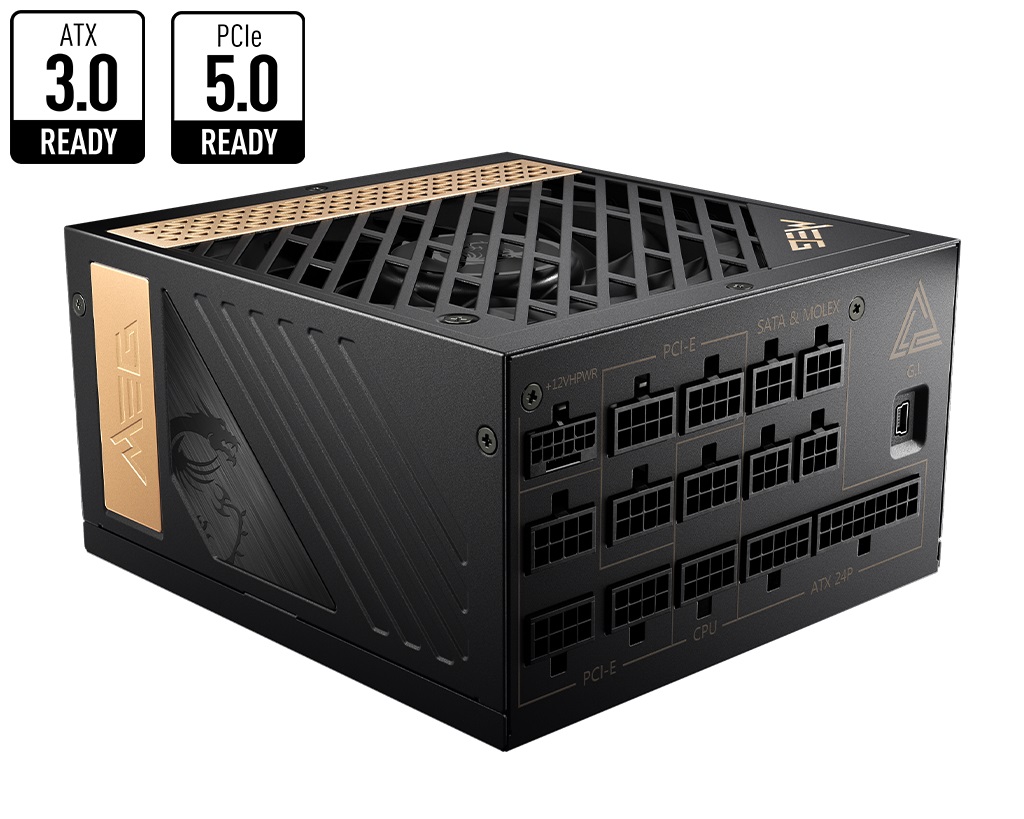

MSI MEG Ai1300P PCIE5 1300W ATX Power Supply Unit 80 PLUS Platinum (up to 92%) Active PFC OCP / OVP / OPP / OTP / SCP / UVP

Description

MSI MEG Ai1300P PCIE5 1300W ATX Power Supply Unit 80 PLUS Platinum (up to 92%) Active PFC OCP / OVP / OPP / OTP / SCP / UVP

Supports the NVIDIA next-gen graphics cards
ATX 3.0 fully support
PCIe 5.0 ready, with native 16 pin connector
Software supported sync the MSI center
Full modular design
Sleeve cable equipment
80 PLUS Platinum certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

SPECIFICATIONS:

PRODUCT NAME MEG Ai1300P PICE5
FORM FACTOR ATX
RATED WATTAGE 1300W
EFFICIENCY RATING 80 PLUS Platinum (up to 92%)
MODULAR Yes (full modular)
FAN SIZE 120 mm
FAN BEARING Hydro Dynamic Bearing
DIMENSIONS (DXWXH) 160 x 150 x 86 mm
PFC TYPE Active PFC
INPUT VOLTAGE RANGE 100-240~
INPUT FREQUENCY RANGE 50~60 Hz
PROTECTION OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN) 1
EPS (8 PIN) 2
PCI-E 5.0 (16 PIN) 1
PCI-E (6+2 PIN) 8
SATA (15 PIN) 16
MOLEX (4 PIN) 4
FDD (4 PIN) 1
