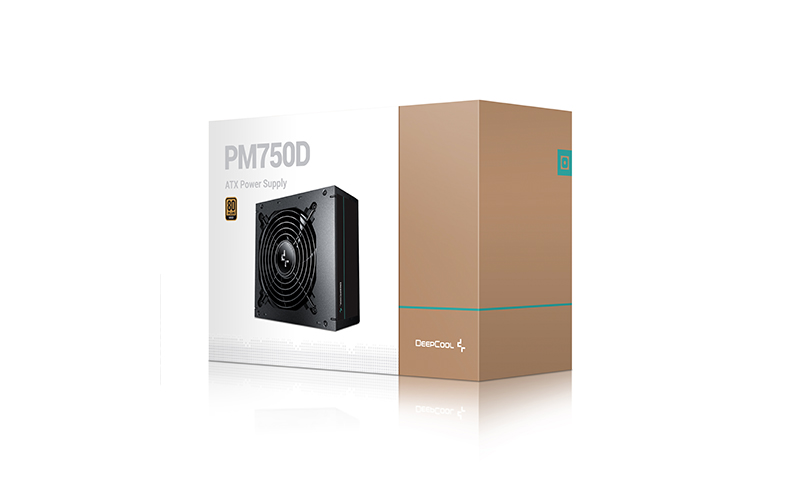

DeepCool PM750D 80+ Gold Power Supply Unit,120mm Fan, Japanese Bulk Capacitor,DC to DC.ATX12V V2.4, 100.000 MTBF, 90% Efficiency 5YWT

$184.20

DeepCool PM750D 80+ Gold Power Supply Unit,120mm Fan, Japanese Bulk Capacitor,DC to DC.ATX12V V2.4, 100.000 MTBF, 90% Efficiency 5YWT

SKU: R-PM750D-FA0B-AU Category:

Description

PM750DDeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value

Active PFC + Full Bridge SRC LLC + DC to DC converter, Japanese Bulk Capacitors, suitable for high wattage PC Power Supplies
PWR_OK (T3) timing under 150ms as required by Intel PSU Design Guide v1.43
60% Dynamic Load on +12V rail ensures voltage stability
Compliant with the EU ErP 2014 regulations for 5Vsb rail for energy saving measures
Black flat cables for easier system building and cable routing
Three independent PCIe interfaces to support high performance GPUs
5 Year Warranty.

Technical Spec

Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD
Fan Size 120mm
Fan Bearing Hypro Bearing
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Japanese Bulk Capacitor
Power Good Signal 100-150ms
Hold Up Time ≥16ms(75% Load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP
Operation Temperature 0-40°C
Regulatory TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Erp Regulation ErP(2014)
MTBF 100,000 Hours
P/N R-PM750D-FA0B-AU

Additional information

Weight2.08 kg
Dimensions27.2 × 19.4 × 11.6 cm
