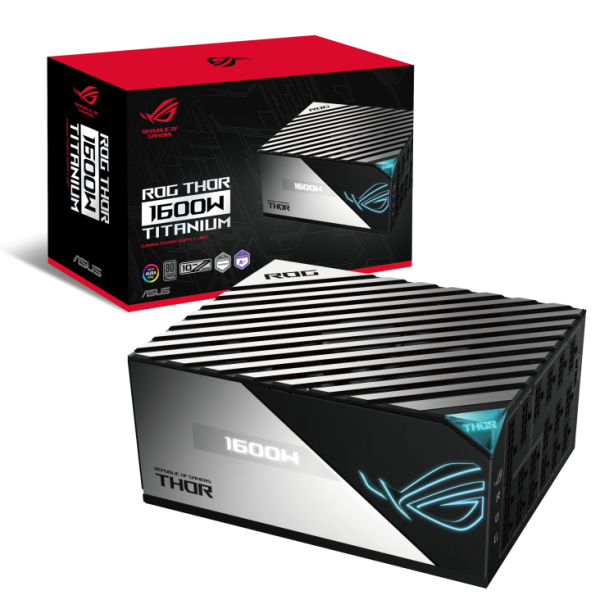

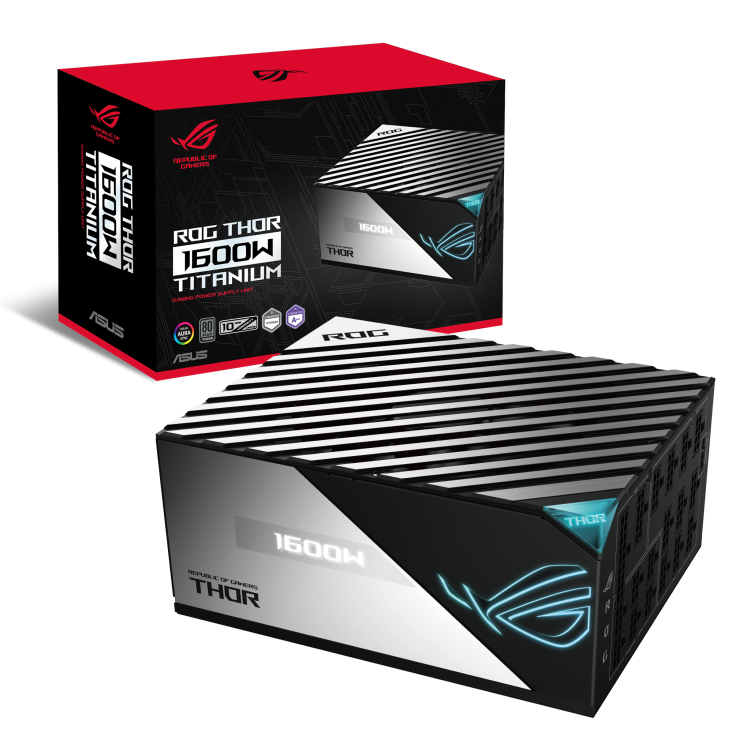

ASUS ROG-THOR-1600T-GAMING 1600Q 80 Plus Titanium, Japanese Capacitors, 135MM PWM FAN, ROG Heatsinks, GAN MOSFETS, ATX12V, ARGB

Description

ASUS ROG-THOR-1600T-GAMING The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.

Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.

Intel Specification ATX12V
Dimensions 190 x 150 x 86 mm
Efficiency 80Plus Titanium
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
Thermal Features ROG Thermal Solution
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A 20A 133.3A 0.3A 3A
Combined Load 100W 100W 1600W 3.6W 15W
Total Output 1600W

Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6

Weight 2.69kg (single PSU)
AURA SYNC ARGB

Package Contents
Power Cord x 1
Motherboard Power Cable x 1
CPU Cable x 2
16-pin PCI-E Cable x 1
PCI-E Cable 1-to-1 x 6
PCI-E Cable 1-to-2 x 2
SATA Cable 1-to-4 x 3
Peripheral 1-to-2 x3
Addressable RGB Cable x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
