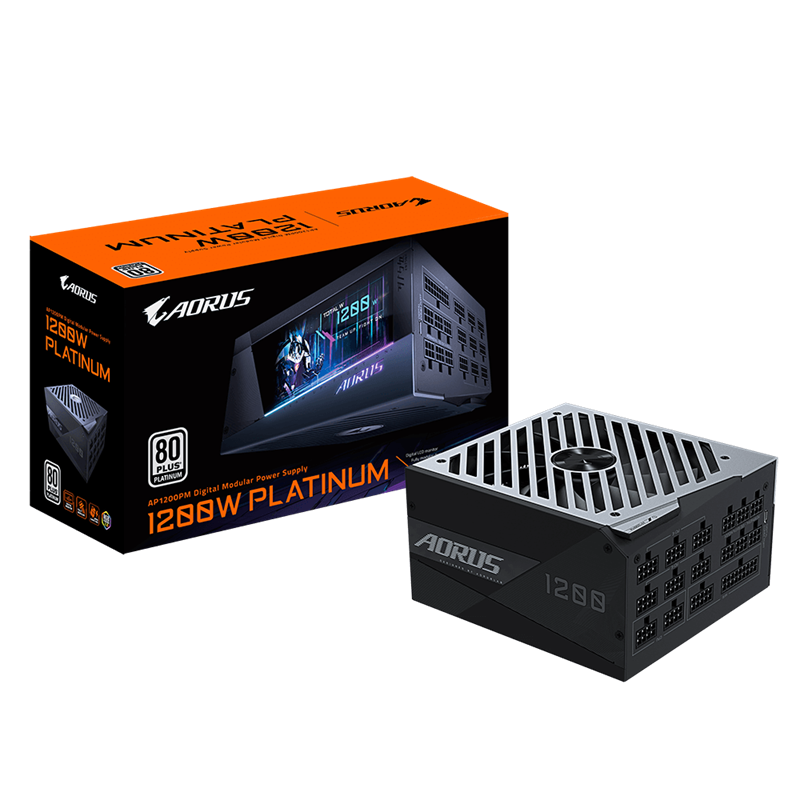

Gigabyte AORUS AP1200PM 1200W 80+ Platinum ATX Modular Power Supply, Digital LCD Monitor, Japanese Capacitors, RGB Fusion 2.0

Description

Gigabyte AORUS AP1200PM 1200W 80 Platinum ATX Modular Power Supply, Digital LCD Monitor, Japanese Capacitors, RGB Fusion 2.0

KEY FEATURE
Digital LCD monitor
80 PLUS Platinum certified
Fully modular design
100% Japanese capacitors
Compact size design
140mm smart double ball bearing fan
Fan dust removal function
Single 12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
10 years warranty (Adjusted according to different regions)

Connectors
ATX/MB 20 4 Pin x 1 : 610mm*1
CPU/EPS 4 4 Pin x 2 : 650mm*2
PCI-e 6 2 Pin x 10 : 650mm 150mm*4/650mm*2
SATA x 16 : 650mm 150mm 150mm 150mm*4
4 Pin Peripheral x 6 4-Pin floppy x 2 : 600mm 120mm 120mm 150mm*2

Model
GP-AP1200PM

Output Capacity
1200W

Input Frequency
60-50 Hz

Input Current
15-7.5A

Input Voltage
100-240 Vac (full range)

PFC
Active PFC (>0.9 typical)

Type
Intel Form Factor ATX 12V v2.31

Fan Type
140mm Double ball bearing Fan

Cable Type
Flat, All black

80 PLUS
Platinum

Efficiency
92% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-500ms

Hold Up Time
>16ms

Dimension
150 x 160 x 86mm
