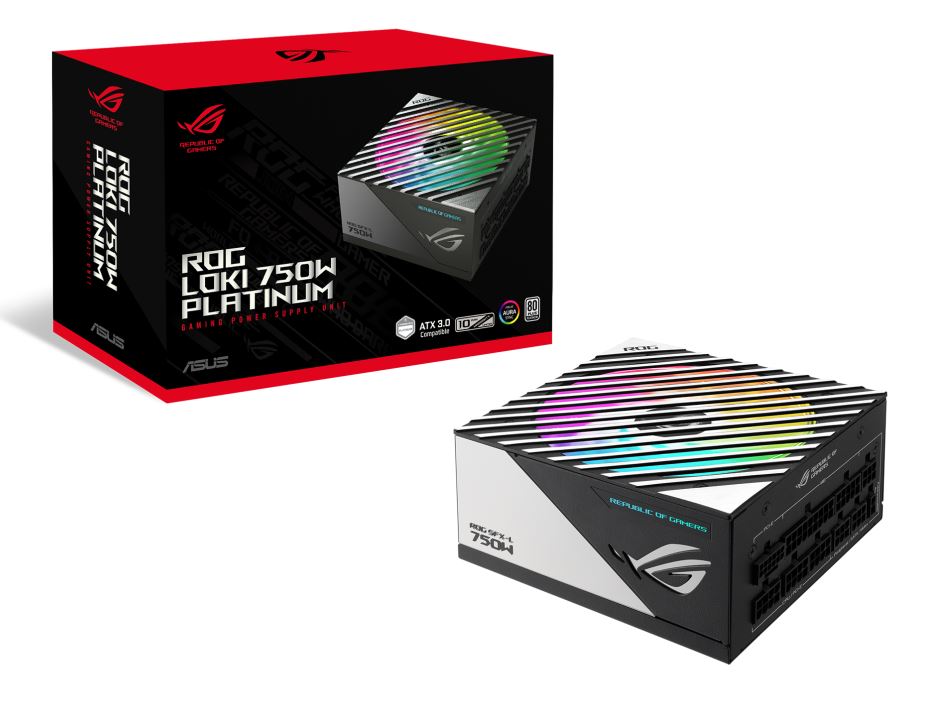

ASUS ROG-LOKI-750P-SFX-L-GAMING 80 PLUS Platinum PSU. Japanese Capacitors.120mm Fan. ROG Heatsink.Dual Ball Fan Bearings

Description

90YE00N4-B0ZA00

Model name ROG-LOKI-750P-SFX-L-GAMING
Intel Specification ATX 12V
Efficiency 80 Plus Platinum
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
Thermal Features ROG Thermal Solution
DC Output Voltage 3.3V 5V 12V -12V 5Vsb
Maximum Load 20A 20A 62.5A 0.8A 2.5A
Combined Load 110W 750W 9.6W 12.5W
Total Output 750W
Connectors ‘MB 24/20-pin x 1
CPU 4 4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4’
Package Contents ‘Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
PCI-E 1-to-2 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (600mm)
Peripheral 1-to-4 Cable x 1 (600mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1’
Dimension
Card Size (mm) 125 x 125 x 63.5 mm
Color Box (mm) 285 x 190 x 100 mm
Weight
Single Card (KG) 1.815
‘Product Weight
(with packing) (KG)’ 2.505
Note * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
