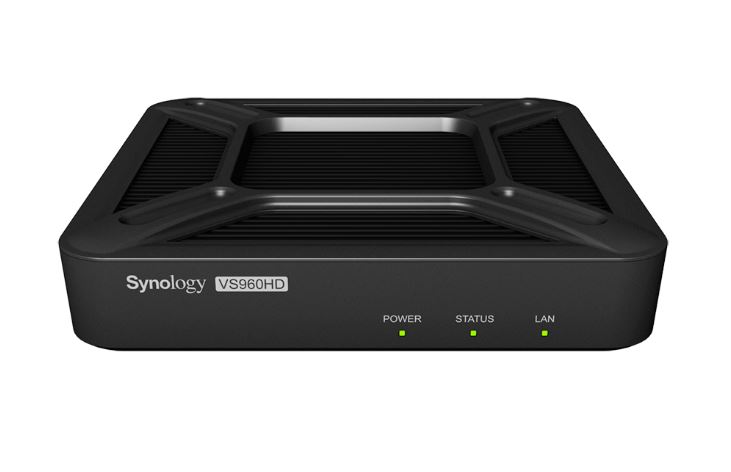

Synology VisualStation VS960HD


Synology VisualStation VS960HD

SKU: VS960HD Category:


Working with Synology NAS, VS960HD is an ultra-compact companion system offering features of Surveillance Station including live view and management tools.

VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station ?? and you have a monitoring station for yourself.

Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20C to 50C. In addition, VisualStation is EN45545 and EN50155 certified.

Video Outputs
Video Outputs HDMI x 2

Supported Video Resolution HDMI 1: 4K (3840 x 2160, 30Hz/60Hz); HDMI 2: 1080p (1920 x 1080, 60Hz)

Audio Input
3.5 mm Stereo Audio Jack x 1

Audio Output
3.5 mm Stereo Audio Jack x 1

RJ-45 1GbE LAN Port 1

USB 2.0 Port 2

USB 3.0 Port 1

Size (Height x Width x Depth) 32 mm x 130 mm x 130 mm

Weight 0.38 kg

Power Supply Unit / Adapter 36 W

AC Input Power Voltage 100 V to 240 V AC

Dynamic DC Input 7-24 V

Power Frequency 50/60 Hz, Single Phase

Power Consumption* 7.2 W (96ch full-load)
4.9 W (Power on Idle)

Operating Temperature -20?C to 50?C (-4?F to 122?F)

Adapter Operating Temperature 0?C to 40?C (32?F to 104?F)

Storage Temperature -20?C to 60?C (-4?F to 140?F)

Relative Humidity 5% to 95% RH


Warranty 3 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

RoHS Compliant

Additional information

Weight 0.42 kg
Dimensions 13 × 13 × 3.2 cm
