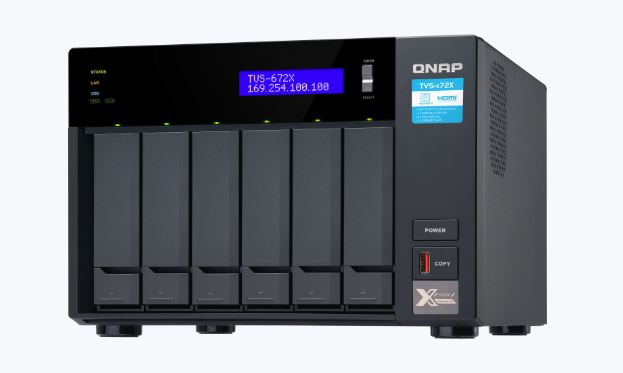

QNAP TVS-672X-i3-8g 6 Bay NAS ntel Core i3-8400T six-core 3.3 GHz 8GB DDR4 Hot-swappable 2xM.2 2280 PCIe 2xGbE 1x10GBase-T 2xThunderbolt 3 1×3.2USB

$2,823.00

QNAP TVS-672X-i3-8g 6 Bay NAS ntel Core i3-8400T six-core 3.3 GHz 8GB DDR4 Hot-swappable 2xM.2 2280 PCIe 2xGbE 1x10GBase-T 2xThunderbolt 3 1×3.2USB

SKU: TVS-672X-i3-8g Categories: ,

Description

Powered by an Intel Core i3/i5 processor, the high-performance TVS-672X NAS features built-in 10GbE connectivity for boosted virtualization performance and streamlined backup and application workflows from multiple workstations. The TVS-672X also supports M.2 NVMe SSDs for cache acceleration, PCIe expansion, multi-cloud backup, 4K HDMI 2.0 output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable, and multifunctional NAS solution.

CPU Intel Core i3 Processor
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics 630
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen3 x2 slots
SSD Cache Acceleration Support
GPU pass-through
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x16 (CPU)
Slot 2: PCIe Gen 3 x4 (PCH)
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
IR Sensor (QNAP RM-IR004 & MCE)
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators HDD 1-6, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 ? 264.3 ? 279.6 mm
Weight (Net) 6.553 kg
Weight (Gross) 8.07 kg
Operating temperature 0 – 40 ?C (32?F – 104?F)
Storage Temperature -20 – 70?C (-4?F – 158?F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit 250W, 100-240

Additional information

Weight8.2 kg
Dimensions19 × 26.5 × 28 cm
