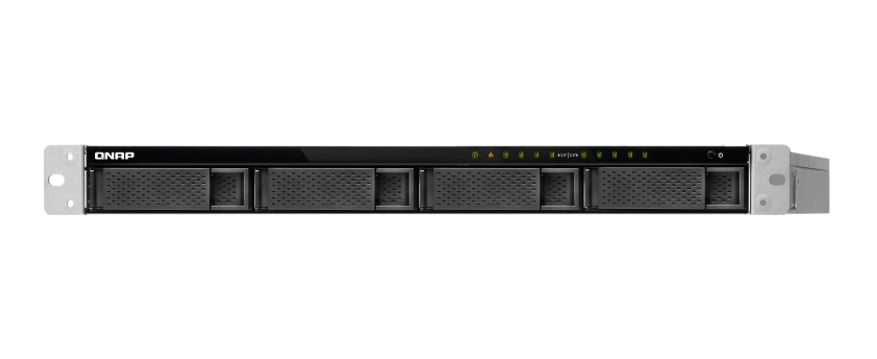

QNAP TS-977XU-RP-3600-8G 9 Bay NAS AMD Ryzen 3600 8GB DDR4 Hot-swappable 2x10GbE SFP+ 1xPCIe Gen 3 x16 WOL 4xUSB3.2 1U Rackmount

$4,451.00

QNAP TS-977XU-RP-3600-8G 9 Bay NAS AMD Ryzen 3600 8GB DDR4 Hot-swappable 2x10GbE SFP+ 1xPCIe Gen 3 x16 WOL 4xUSB3.2 1U Rackmount

SKU: TS-977XU-RP-3600-8G Categories: ,

Description

QNAP TS-977XU-RP-3600-8G 9 Bay NAS AMD Ryzen 3600 8GB DDR4 Hot-swappable 2x10GbE SFP+ 1xPCIe Gen 3 x16 WOL 4xUSB3.2 1U Rackmount

Powered by AMD’s powerful Ryzen processor, the TS-977XU-RP delivers high system performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. The TS-977XU-RP features a hybrid structure with four 3.5-inch HDD and five 2.5-inch SSD drive bays, allowing for enabling SSD caching and Qtier auto-tiering technology to greatly boost IOPS to meet the performance requirements of demanding applications. The TS-977XU-RP features two SFP+ 10GbE ports and two Gigabit ports for high-speed connectivity, providing businesses and organizations with an ideal solution for quickly deploying a high-bandwidth, high-reliability storage environment. The TS-977XU-RP also features a redundant power supply to ensure maximum system uptime.

TS-977XU-RP-3600-8G
CPU AMD Ryzen 5 3600 6-core/12-thread processor, burst up to 4.2 GHz
CPU Architecture 64-bit x86
Encryption Engine (AES-NI)
System Memory 8 GB UDIMM DDR4 (1 x 8GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5 GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch + 5 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
CIe Slot 1
Slot 1: PCIe Gen 3 x16
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 1U Rackmount
LED Indicators HDD 1-9, Status, LAN, storage expansion port status
Buttons Power, Reset
Operating temperature 0 – 40 ?C (32?F – 104?F)
Power Supply Unit 300W(x2), 100-240V
Power Consumption: Operating Mode, Typical 76.43 W

Additional information

Weight8.8 kg
Dimensions43 × 48 × 50 cm
