QNAP TL-D800C USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

$958.00

QNAP TL-D800C USB 3.2 Gen2 Type-C high-capacity JBOD storage enclosure

SKU: TL-D800C Categories: ,

Description

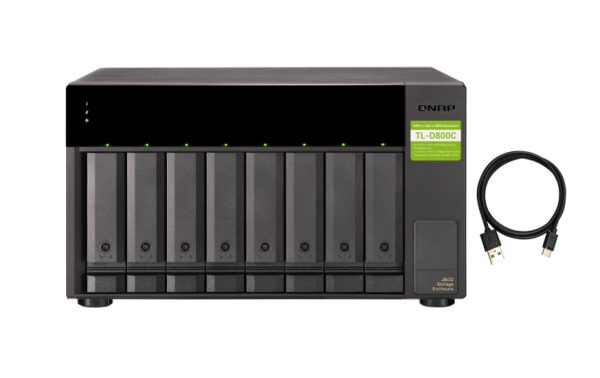

The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.

Note
1. TL-D800C only supports devices with USB 3.2 Gen1 (or above) port.
2. QNAP recommends following the standard procedure to connect or disconnect the TL-D800C. For more information, please see the TL-D800C user manual.
3. The TL-D800C can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the TL-D800C.
4. The TL-D800C only supports QNAP NAS running on QTS 4.4.2 (or above) or QTS hero operating system.
5. The TL-D800C doesn’t support ASM1142 USB controller IC based USB ports and PCIe expansion cards (e.g. QNAP USB-U31A2P01 expansion card).

Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off Switch
Form Factor Tower
Host Interface 1 x USB 3.2 Gen 2 Type-C
LED Indicators HDD 1-8, Status, Link, Fan error
Buttons Power switch
Dimensions (HxWxD) 188.2 ? 329.3 ? 281.4 mm
Weight (Net) 6.18 kg
Weight (Gross) 7.54 kg
Max. number of HDDs/SSDs supported 8
Hard Drive Type 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature 0 – 40 ?C (32?F – 104?F)
Storage Temperature -20 – 70?C (-4?F – 158?F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit 250W PSU, 100 – 240V
Power Consumption: Operating Mode, Typical 48.4 W
Tested with drives fully populated.
Fan Mode Switch (Auto, high, medium, low)
Fan 2 x 120mm, 12VDC
System Warning Buzzer

Additional information

Weight7.6 kg
Dimensions19 × 33 × 29 cm
