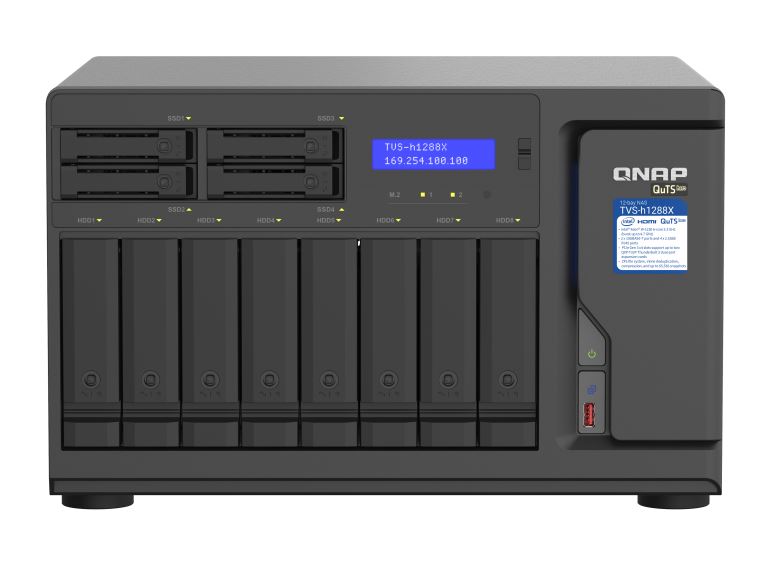

QNAP 12 Bay NAS Intel Xeon W-1250 6-core 3.3 GHz 16G DDR4 2 x M.2 22110/2280 NVMe PCIe Gen3x4 slots 4×2.5GE 2 x10GBASE-T WOL 3 xUSB3.2 Hot-swappable

$5,133.00

QNAP 12 Bay NAS Intel Xeon W-1250 6-core 3.3 GHz 16G DDR4 2 x M.2 22110/2280 NVMe PCIe Gen3x4 slots 4×2.5GE 2 x10GBASE-T WOL 3 xUSB3.2 Hot-swappable

SKU: TVS-h1288X-W1250-16G Categories: ,

Description

The high-capacity TVS-h1288X features a powerful Intel Xeon W processor and allows for installing two QNAP QXP-T32P Thunderbolt 3 PCIe expansion cards (sold separately) to attain four Thunderbolt 3 ports, making it a perfect match for Thunderbolt-equipped Mac and Windows users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1288X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.

CPU Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz)
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics P630
System Memory 16 GB ECC UDIMM DDR4 (2 x 8 GB)
Memory Slot 4 x Long-DIMM DDR4
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable
M.2 SSD Slot 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (also support 10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/1G)
25 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)
Thunderbolt Port Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter
PCIe Slot 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C 3 x Type-A
HDMI Output 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
Operating temperature 0 – 40?C (32?F – 104?F)
Power Supply Unit 550W PSU, 100~240V
Power Consumption: HDD Sleep Mode 85.216 W
Fan System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC
3 yr warranty

Additional information

Weight15 kg
Dimensions31.98 × 36.99 × 23.46 cm
