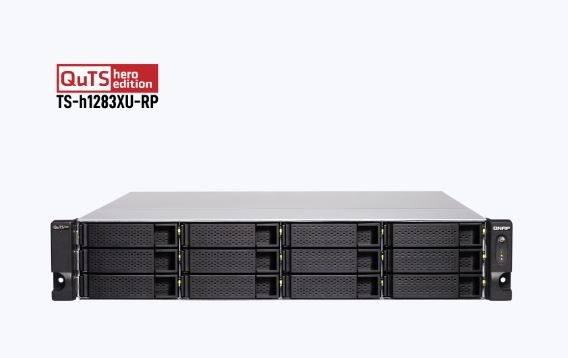

Qnap 12-Bay NAS Intel Xeon E-2136 6 cores/12 threads 3.3 GHz processor 32GB DDR4 ECC (2 x 16 GB) redundant power supply no rail kit 5 YR WTY

$7,025.00

Qnap 12-Bay NAS Intel Xeon E-2136 6 cores/12 threads 3.3 GHz processor 32GB DDR4 ECC (2 x 16 GB) redundant power supply no rail kit 5 YR WTY

SKU: TS-h1283XU-RP-E2136-32G Categories: ,

Description

Qnap 12-Bay NAS Intel Xeon E-2236 6 cores/12 threads 3.4 GHz processor 32GB DDR4 ECC (2 x 16 GB) redundant power supply no rail kit 5 YR WTY

The QuTS hero NAS TS-h1283XU-RP is powered by an Intel Xeon E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h1283XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1283XU-RP helps your business achieve reliable service-level agreement performance, whether in a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

CPU Intel Xeon E-2136 6-core 3.3 GHz processor (burst up to 4.5 GHz)
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 32 GB UDIMM DDR4 ECC (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 3 and slot 4 are preinstalled with 10GbE network adapters
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 2U Rackmount
LED Indicators HDD 1-12, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 88.3 ? 482 ? 562 mm
Weight (Net) 11.75 kg
Operating temperature 0 – 40 ?C (32?F – 104?F)

Additional information

Weight11.8 kg
Dimensions9 × 48.5 × 56.5 cm
