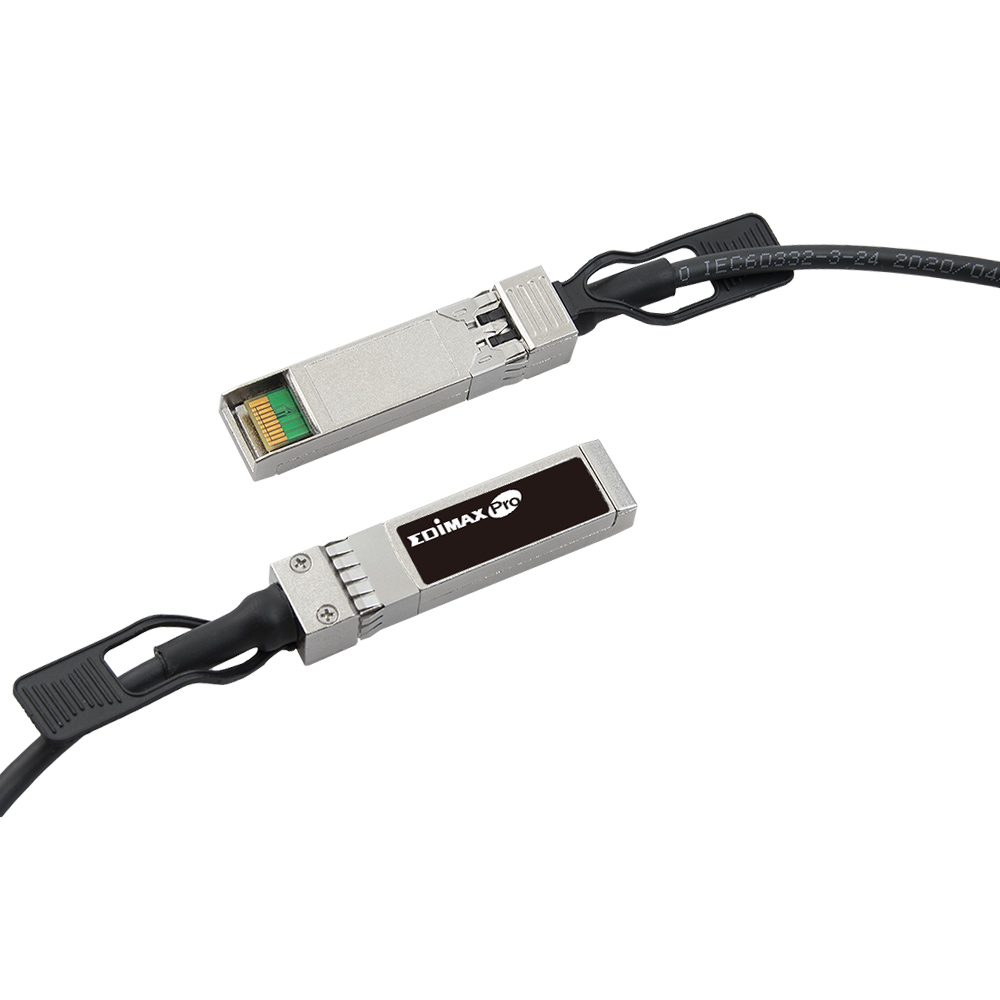

Edimax 0.5 Meter 10GBE SFP+ DAC Direct Attach Copper Twinax Cable, Backward Compatible to SFP



SKU: EA1-005D Category:


Edimax EA1 Series EA1-005D 10GBE SFP+ DAC Direct Attach Cable

​High-speed data rates up to 10GBps
Compatible with SFP+ MSA (Multi-Source Agreement)
Backward compatible to SFP (1GBps)
Easy plug-and-play with hot-pluggable SFP 20-PIN footprint
I/O connector designed for high speed differential signal applications
Improved Pluggable Form-Factor (IPF) compliant for enhanced EMI/EMC performance
Lower power consumption with 0.5W Max.
Work with any devices equipped a SFP+/SFP port such as switch, storage, server, NIC (PCI-E adapter), date center, high-performance computing and etc.


Cable Type Passive Copper Twinax Cable, Oxygen-Free Copper
Connector SFP+ Connectors on Both Ends
Conductor Gauge 30AWG
Jack PVC
Dimension Connector: 13.6(W) x 57(D) x 8.5(H) mm
Cable Length:
•EA1-005D: 0.5 Meter/1.64 Feet
•EA1-020D: 2 Meter/6.54 Feet

Data Transmission Rate Up to 10GBps
Bit Error Rate(BER) > 10-12

Standard SFP+ MSA (Multi-Source Agreement)
SFF 8431, SFP+ High Speed Electrical Interface
SFF-8472, Digital Diagnostic Monitoring Interface for Optical Transceivers
Temperature Range Storage: -40~ 85 °C (-40~185°F )
Operation: 0~ 70 °C (32~158°F )
Certification CE, RoHS
