Billion BIPAC4700ZU 4G LTE Outdoor VPN Router – Gigabit LAN/IP67 VPN/MIMO Antenna/300MBps/50MBps/Supports POE



SKU: BIPAC4700ZU Category:

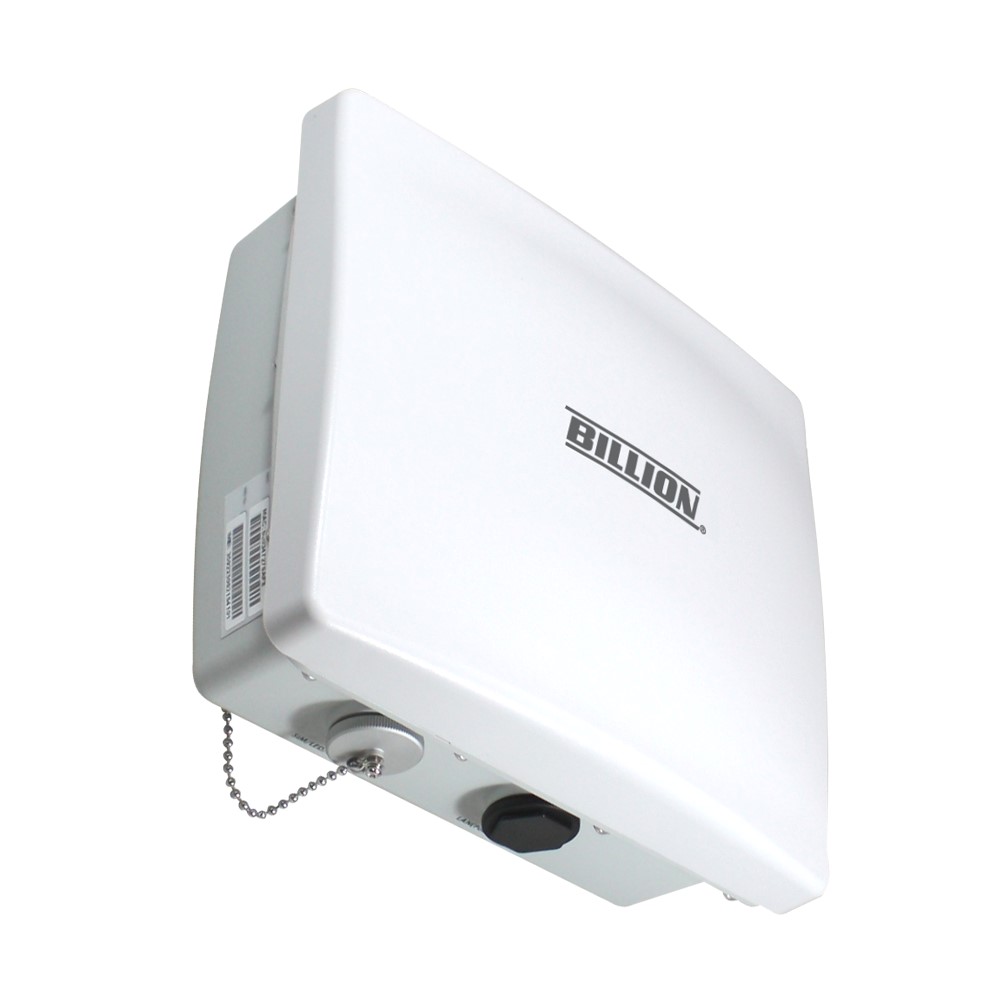

Billion MOBIPAC4700ZU 4G LTE Outdoor VPN Router

BiPAC 4700ZU, 4G LTE Outdoor IP67 Rugged VPN Router, features VPN and optimal MIMO antenna per LTE band that can work for both LOS (Line of Sight) and NLOS (Non-Line of Sight) environments to maximize LTE wireless coverage at peaks speeds up to 100MBps downlink and 50MBps uplink with ultra transmission security. It also offers IP67 hardened enclosure with industrial-grade components to withstand the most challenging outdoor environments ranging from -40°C-60°C/-40°F-140°F.

General Features
 EMBedded 4G LTE
• EMBedded high performance 4G/LTE module
• Frequency bands and data rate depend on
equipped LTE module
 LTE Antenna
• EMBedded Dual-Polarized MIMO Antenna
• Optimize antenna design per band
 Operational Mode
• Bridge or Routed mode
Features (Routed Mode)
 Network Protocols and Features
• IPv4, IPv6, IPv4/ IPv6 dual stack
• Dual APN
• NAT, Static Routing and RIP-1/2
• Virtual Server and DMZ
• SNTP, DNS relay and DDNS
• IGMP Snooping and IGMP Proxy
• Supports DHCP server/client
 Firewall
• Built-in NAT firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack,
Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• Password protection for system management
• VPN pass-through
 Secure VPN Connections (BiPAC 4700ZU only)
• IPSec
• L2TP
• OpenVPN
 Management
• Web-based GUI for remote and local
• Firmware upgrade and configuration data
upload and download via web-based GUI
• TR-069*
• Syslog monitoring
• 3G/ 4G LTE usage allowance
 Hardware Specifications

Physical Interface
• Giga Ethernet LAN with IEEE 802.3at
complaint PoE P.D
• SIM slot (for the SIM from Telco/ISP)
• LED Indicators: Power, LAN(PoE), LTE, and

Physical Specifications
• Dimensions: 8.5′ (W) x 7.5′ (H) x 3.0′ (D)
(257mm x 227 mm x 91mm)
• Weight: 1.81kg (4lbs)
• IP-67 grade
