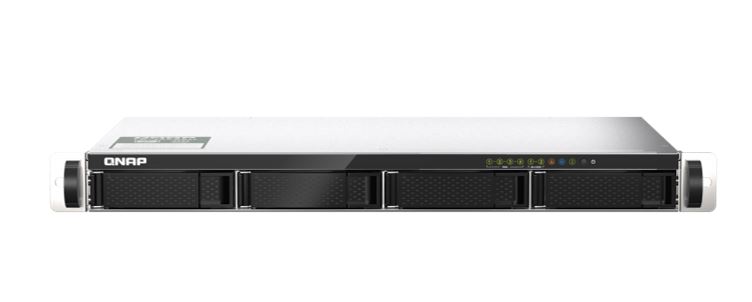

QNAP TS-435XeU Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72 4 Bay NAS 4GB DDR4 Hot-swappable 2xM.2 Slot 2×2.5GbE 2x10GbE SFP+ WOL 2xUSB3.2 1U

Description

The compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.

S-435XeU-4G
CPU Marvell OCTEON TX2 CN9130 / CN9131 ARMv8 Cortex-A72 4-core 2.2GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 4 GB SODIMM DDR4 (1 x 4GB)
Maximum Memory 32 GB (1 x 32 GB)
Memory Slot 1 x SO-DIMM DDR4
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1 slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP
Wake on LAN (WOL)
Jumbo Frame
USB 2.0 port 2
USB 3.2 Gen 1 port 2
Form Factor 1U Rackmount
LED Indicators HDD 1-4, Status, LAN, USB, M.2 SSD 1-2
Buttons Power, Reset
Dimensions (HxWxD) 43.3 ? 430 ? 292.12 mm
Weight (Net) 4.17 kg
Operating temperature 0 – 40 ?C (32?F – 104?F)
Storage Temperature -20 – 70?C (-4?F – 158?F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27C (80.6F)
Power Supply Unit 100W PSU, 100-240V
Power Consumption: HDD Sleep Mode 17.367 W
Power Consumption: Operating Mode, Typical 30.878 W
Fan 3 x 40mm, 12VDC
