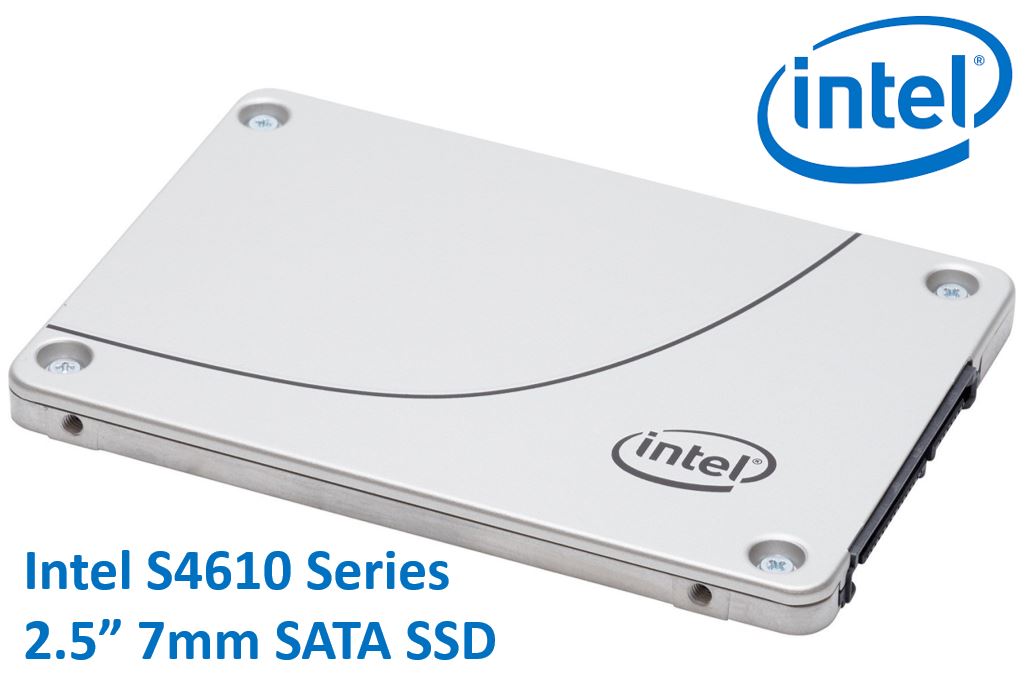

Intel DC S4610 2.5′ 7.68TB SSD SATA3 6GBps 3D2 TCL 7mm 550R/510W MB/s 90K/35K IOPS 3xDWPD 2 Mil Hrs MTBF Data Center Server 5yrs Wty

Description

Intel DC S4610 2.5′ 7.68TB SSD SATA3 6GBps 3D2 TCL 7mm 550R/510W MB/s 90K/35K IOPS 3xDWPD 2 Mil Hrs MTBF Data Center Server 5yrs Wty

Intel® SSD D3-S4510 and D3-S4610 Series Product Brief
Move to more efficient storage while preserving your legacy infrastructure. Replacing HDDs with the Intel® SSD D3-S4510 and D3-S4610 Series based on 64-layer Intel® 3D NAND TLC, reduces the storage operating cost, accelerates read-intensive workloads at higher service levels, and improves overall system reliability and flexibility. These reliable SSDs meet demanding service level requirements while increasing server efficiency. Innovative SATA firmware and the latest generation of Intel® 3D NAND make SSD D3-S4510 and D3-S4610 compatible with existing SATA setups for an easy storage upgrade.

Essentials
Product Collection Intel® SSD D3-S4610 Series
Code Name Products formerly Youngsville Refresh
Capacity 7.68 TB
Status Launched
Launch Date Q4’19
Lithography Type 64-Layer TLC 3D NAND
Use Conditions Server/Enterprise
Performance Specifications
Sequential Read (up to) 550 MB/s
Sequential Write (up to) 510 MB/s
Random Read (100% Span) 90000 IOPS
Random Write (100% Span) 35000 IOPS
Latency – Read 36 µs
Latency – Write 39 µs
Power – Active 4.6W
Power – Idle 1.6W
Reliability
Vibration – Operating 2.17 GRMS
Vibration – Non-Operating 3.13 GRMS
Shock (Operating and Non-Operating) 1000 G/0.5 msec
Operating Temperature Range 0°C to 70°C
Operating Temperature (Maximum) 70 °C
Operating Temperature (Minimum) 0 °C
Endurance Rating (Lifetime Writes) 23.9 PBW
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER) 1 sector per 10^17 bits read
Warranty Period 5 yrs
Supplemental Information
Additional Information URL View now
Package Specifications
Form Factor 2.5′ 7mm
Interface SATA 3.0 6GB/S
Advanced Technologies
Enhanced Power Loss Data Protection Yes
Hardware Encryption AES 256 bit
