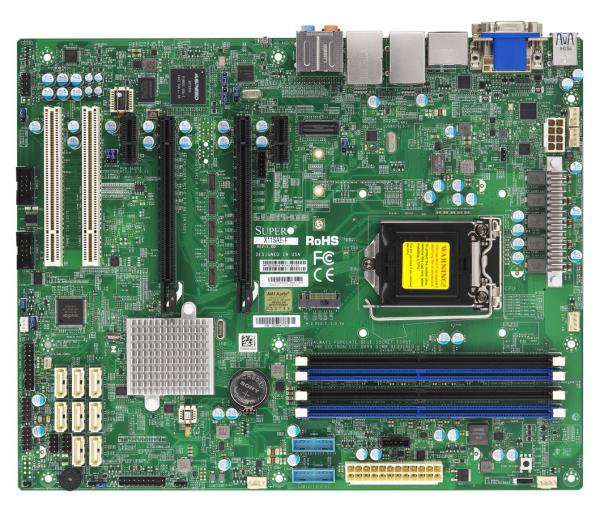

Supermicro X11SAE-F Server Motherboard, ATX, Intel C236, LGA 1151, E3-1200 v5/v6, 4x DDR4-2400MHz, 1x i219LM GBe Lan, 2x PCIe x16, 2x PCIe x12, M.2

Description

Product SKUs
MBD-X11SAE-F
X11SAE-F

Physical Stats
Form Factor
ATX
Dimensions
12′ x 9.6′ (30.48cm x 24.38cm)

Processor/Cache
CPU
Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series, Intel® Xeon® processor E3-1200 v6/v5.
Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
A graphic integrated CPU is needed to have on-board video from DVI and DP ports. Examples: E3-1235L v5, E3-1275 v5
Note
BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series

System Memory
Memory Capacity
Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
4x 288-pin DDR4 DIMM slots, Up to 64GB DDR4 ECC UDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
4GB, 8GB, 16GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel® C236
SATA
Intel® C236 controller for 8 SATA3 (6 GBps) ports; RAID 0,1,5,10
+ 1 PCI-E M.2(PCI-E x4, 2242/2260/2280)(No Raid support)
IPMI
OOB Bios refresh function is not supported
Network Controllers
Single LAN with Intel® Ethernet Controller I210-AT
(Share with IPMI)
Single LAN with Intel® PHY I219LM LAN controller
Audio
ALC 888S HD Audio
Graphics
Aspeed AST2400 BMC
***VGA is for IPMI only***

Input / Output
USB
6 USB 2.0 ports (2 rear + 4 via headers)
6 USB 3.1 Gen1 ports (2 Rears Type A, 4 via headers)
2 USB 3.1 Gen2 ports , 2 Type A)
Video Output
1 DVI – D port, 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port,
***VGA is for IPMI only***
Serial Port / Header
2 COM Ports (2 headers)
TPM
1 TPM Header
Expansion Slots
PCI-E
2 PCI-E 3.0 x16,
2 PCI-E 3.0 x12 – 5V PCI 32bit
***2 PCI-E x16 slots are running at x16/NA or x8/x8 ***
M.2
M.2 Interface: 1 PCI-E 3.0 x4
