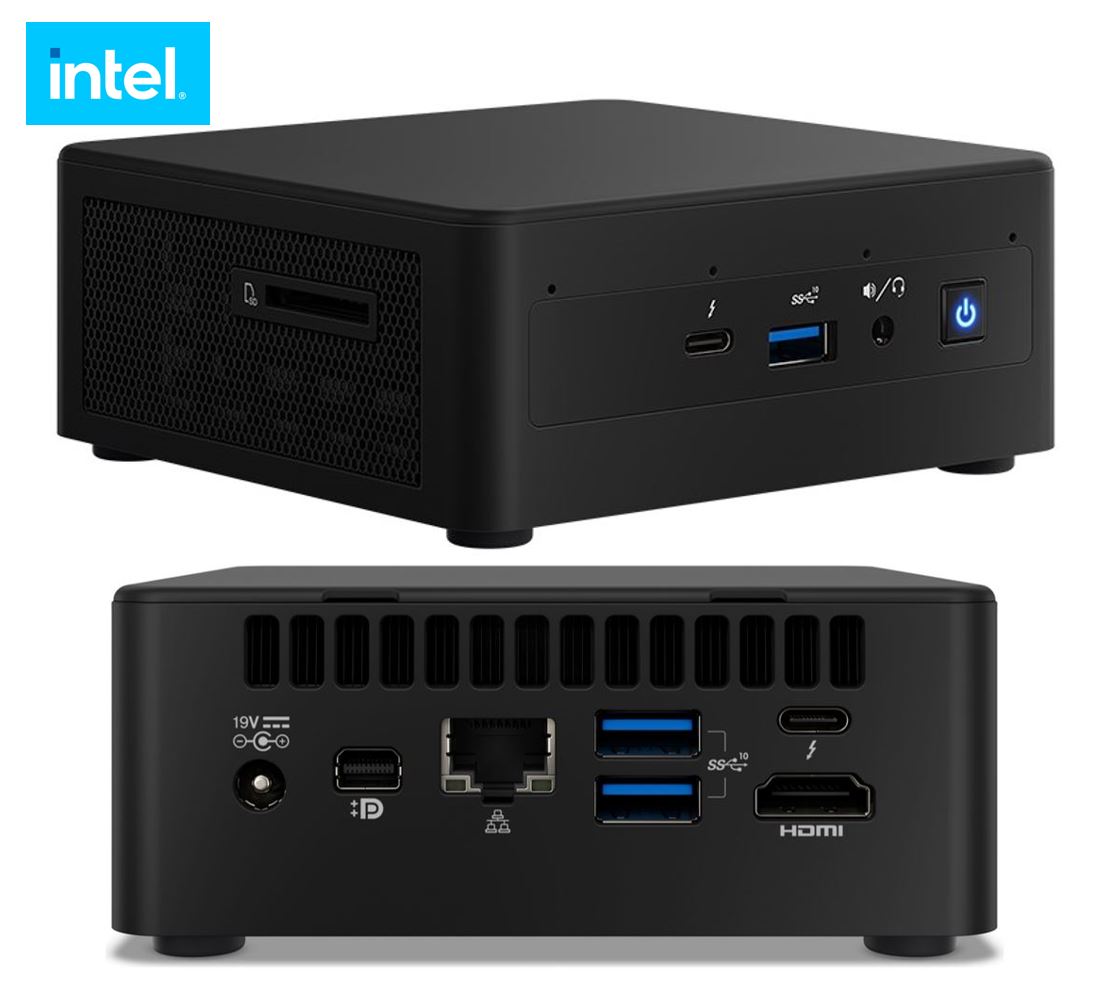

Intel NUC i3-10110U 4.1GHz 2xDDR4 SODIMM M.2 PCIe SSD HDMI USB-C (DP1.2) 3xDisplays GBE LAN WiFi BT 6xUSB

$599.01

intel-nuc-i3-10110u-4-1ghz-2xddr4-sodimm-m-2-pcie-ssd-hdmi-usb-c-dp1-2-3xdisplays-GBe-lan-wifi-bt-6xusb

SKU: BXNUC10I3FNK4 Category:

Description

Intel NUC mini PC i3-10110U 4.1GHz 2xDDR4 SODIMM M.2 PCIe SSD HDMI USB-C (DP1.2) 3xDisplays GBE LAN WiFi BT 6xUSB DS POS

Essentials
Product Collection Intel® NUC Kit with 10th Generation Intel® Core™ Processors
Code Name Products formerly Frost Canyon
Status Launched
Launch Date Q4’19
Supported Operating Systems Windows 10, 64-bit*
Board NuMBer NUC10i3FNB
Board Form Factor UCFF (4′ x 4′)
Socket Soldered-down BGA
Internal Drive Form Factor M.2 SSD
# of Internal Drives Supported 1
Lithography 14 nm
TDP 25 W
DC Input Voltage Supported 19 VDC
Processor Included Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz)
Intel vPro® Platform Eligibility ‡ No
# of Cores 2
# of Threads 4
Processor Base Frequency 2.10 GHz
Max Turbo Frequency 4.10 GHz
Warranty Period 3 yrs
Recommended Customer Price $316.24 – $318.70
Supplemental Information
EMBedded Options Available No
Datasheet View now
Description Other features: Includes far-field quad array microphones
Memory & Storage
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2666 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 42.6 GB/s
Max # of DIMMs 2
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics for 10th Gen Intel® Processors
Integrated Graphics ‡ Yes
Graphics Output HDMI 2.0b; USB-C (DP1.2)
# of Displays Supported ‡ 3
Expansion Options
PCI Express Revision Gen3
PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes
Removable Memory Card Slot SDXC with UHS-II support
M.2 Card Slot (storage) 22×42/80
I/O Specifications
# of USB Ports 7
USB Configuration 2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C); 2x USB 2.0 via internal headers
USB Revision 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 GB/s Ports 2
Audio (back channel + front channel) 7.1 digital
