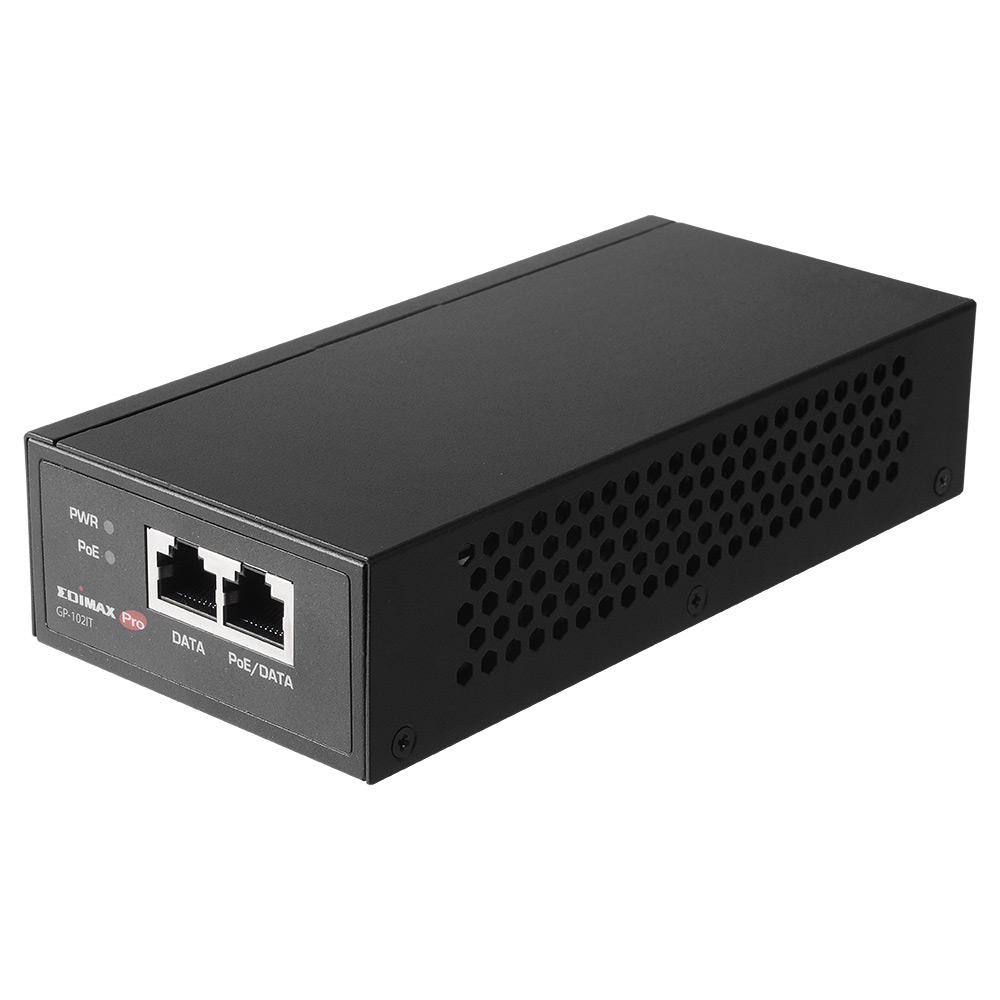

Edimax GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector, Up to 100M, 60W



SKU: GP-102IT Category:


Edimax GP-102IT IEEE 802.3bt Gigabit 60W PoE++ Injector

Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards.
Adds PoE capability to a non-PoE Ethernet switch or router.
Gigabit LAN ports provide high-speed connectivity.
Supports PoE Powered Device (PD) up to 60W.
PoE short circuit protection to safeguard network devices.
Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable.
Reduces installation and equipment costs.
Easy plug-and-play desktop or wall-mounted installation.

Ports 1 x RJ-45 10/100/1000Base-T input ports
1 x RJ-45 10/100/1000Base-T PoE output ports
LED Indicators AC Power (PWR)
PoE Power
Power Input 100-240V AC, 50-60Hz, 1.5A
Mounting Desktop/Wall
Housing Metal
Fan Fanless
Dimension 73(W) x 154(D) x 36(H)mm
Weight 568g

Standard IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Power Output DC 54V/1.67A, up to 60W
Pin Assignment 1/2, 3/6 for IEEE 802.3at/af
1/2, 3/6 and 4/5, 7/8 for IEEE 802.3bt 60W PoE++ power
Short Circuit Protection Yes
Over Circuit Protection Yes
PoE PD Auto Detection Yes

Standard IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
IEEE 802.3bt 4-Pair Power Over Ethernet Type 3
Certification CE, FCC
Environmental Condition Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~158°F (-20~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Package Content Injector
Quick Installation Guide
Power Cord
Robbert Pads
