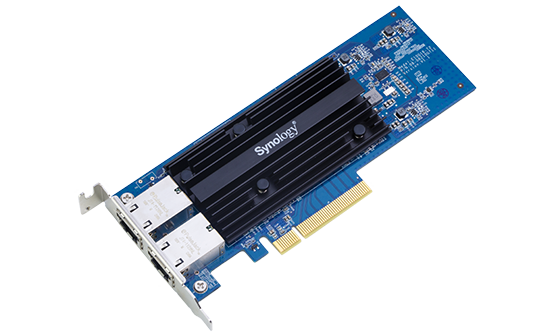

Synology E10G18-T2 Add-In Card Dual Port High-Speed10GBASE-T add-in card for Synology servers

Description

Synology E10G18-T2 Add-In Card Dual Port High-Speed 10GBASE-T add-in card for Synology servers

Enjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.

General Specifications
Standards
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3x Flow Control
Data Transfer Rates
10 Gbps
Network Operation Mode
Full Duplex
Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
TCP Segmentation Offload (TSO)
Notes DSM version requirement: 6.2.1-23824 or later version
Hardware Specifications
PCIe Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth)
170.6 mm x 68.9 mm x 13.6 mm
Operating Temperature
0?C to 40?C (32?F to 104?F)
Storage Temperature
-20?C to 60?C (-5?F to 140?F)
Relative Humidity
5% to 95% RH
