Qnap TS-h973AX 9-Bay NAS AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processor 8G Hot-swappable 2 x2.5GbE 1x10GBASE-T 4xUSB3.2 3YR WTY

$1,998.00

Qnap TS-h973AX 9-Bay NAS AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processor 8G Hot-swappable 2 x2.5GbE 1x10GBASE-T 4xUSB3.2 3YR WTY

SKU: TS-h973AX-8G Category:

Description

Qnap TS-h973AX 9-Bay NAS AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processor 8G Hot-swappable 2 x2.5GbE 1x10GBASE-T 4xUSB3.2 3YR WTY

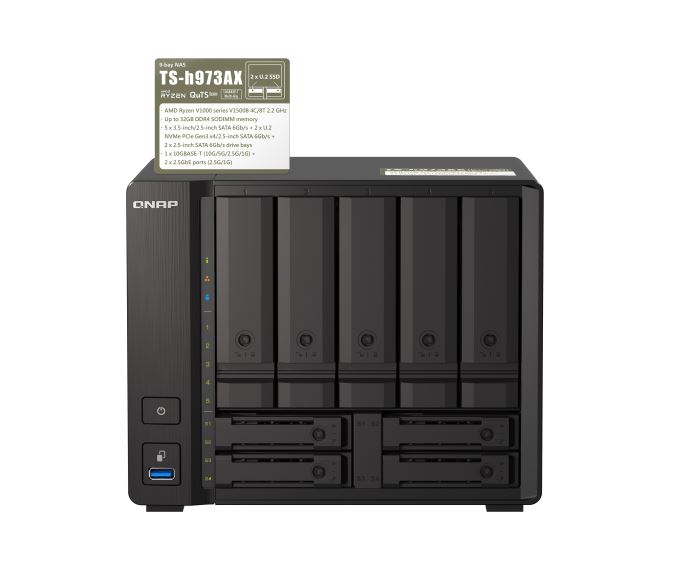

Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.

CPU AMD Ryzen Embedded V1500B quad-core eight threads 2.2 GHz processor
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
System Memory 8 GB SO-DIMM DDR4 (1 x 8 GB)
Memory Slot 2 x SO-DIMM DDR4
Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 5 x 3.5-inch + 4 x 2.5-inch
Hot-swappable Yes
SSD Cache Acceleration
2.5 Gigabit Ethernet Port 2
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via the QNA-UC5G1T USB to 5GbE network adapter
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2
Operating temperature 0 – 40 ?C (32?F – 104?F)
Power Consumption: HDD Sleep Mode 41.2 W
Fan 1 x 140mm, 12VDC
3 year stander warranty

Additional information

Weight 5.2 kg
Dimensions 18.3 × 22.5 × 22.5 cm
