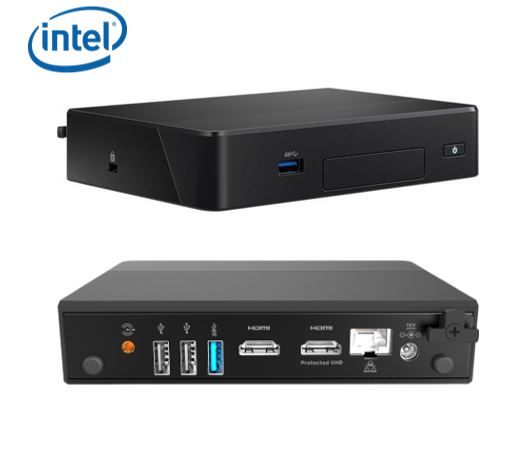

Intel NUC 8 Rugged Fanless Cel-N3350 2.4GHz 4GB 64GB eMMC m.2 SSD HDMI eDP 2xDisplays GBE LAN WL-AC 4xUSB No Audio Jack

Description

Intel NUC BKNUC8CCHKRN4 8 Rugged Fanless Cel-N3350 2.4GHz 4GB 64GB eMMC m.2 SSD HDMI eDP 2xDisplays GBE LAN WL-AC 4xUSB No Audio Jack

Essentials
Product Collection Intel® NUC Kit with Intel® Celeron® Processors
Code Name Products formerly Chaco Canyon
Status Launched
Launch Date Q3’19
Supported Operating Systems Windows 10, 64-bit*
Board NuMBer NUC8CCHB
Board Form Factor 3.5′ SBC (146mm x 101.6mm)
Internal Drive Form Factor M.2 SSD
EMBedded Storage 64 GB
DC Input Voltage Supported 12V – 24V
Processor Included Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)
# of Cores 2
# of Threads 2
Processor Base Frequency 1.10 GHz
Warranty Period 3 yrs
Supplemental Information
EMBedded Options Available No
Memory & Storage
Included Storage 64GB eMMC
Included Memory 4GB LPDDR3 (dual-channel, soldered-down)
ECC Memory Supported ‡ No
Processor Graphics
Processor Graphics ‡ Intel® HD Graphics 500
Graphics Output HDMI 2.0, HDMI 1.4, 4-lane eDP 1.4
# of Displays Supported ‡ 2
Expansion Options
PCI Express Revision Gen 2
M.2 Card Slot (wireless) 22×30 slot (key E)
M.2 Card Slot (storage) 22×80 slot (key M; NVMe/SATA)
I/O Specifications
# of USB Ports 4
USB Configuration 1x front and 1x rear USB 3.0; 2x rear USB 2.0; 1x USB 3.0 and 2x USB 2.0 via internal headers
Serial Port via Internal Header Yes
Audio (back channel + front channel) 1/8′ line out
Integrated LAN Intel® i211-AT (10/100/1000 MBps)
Integrated Wireless‡ Intel® Dual Band Wireless-AC 3168
Integrated Bluetooth Yes
Additional Headers Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2×2 power connector
