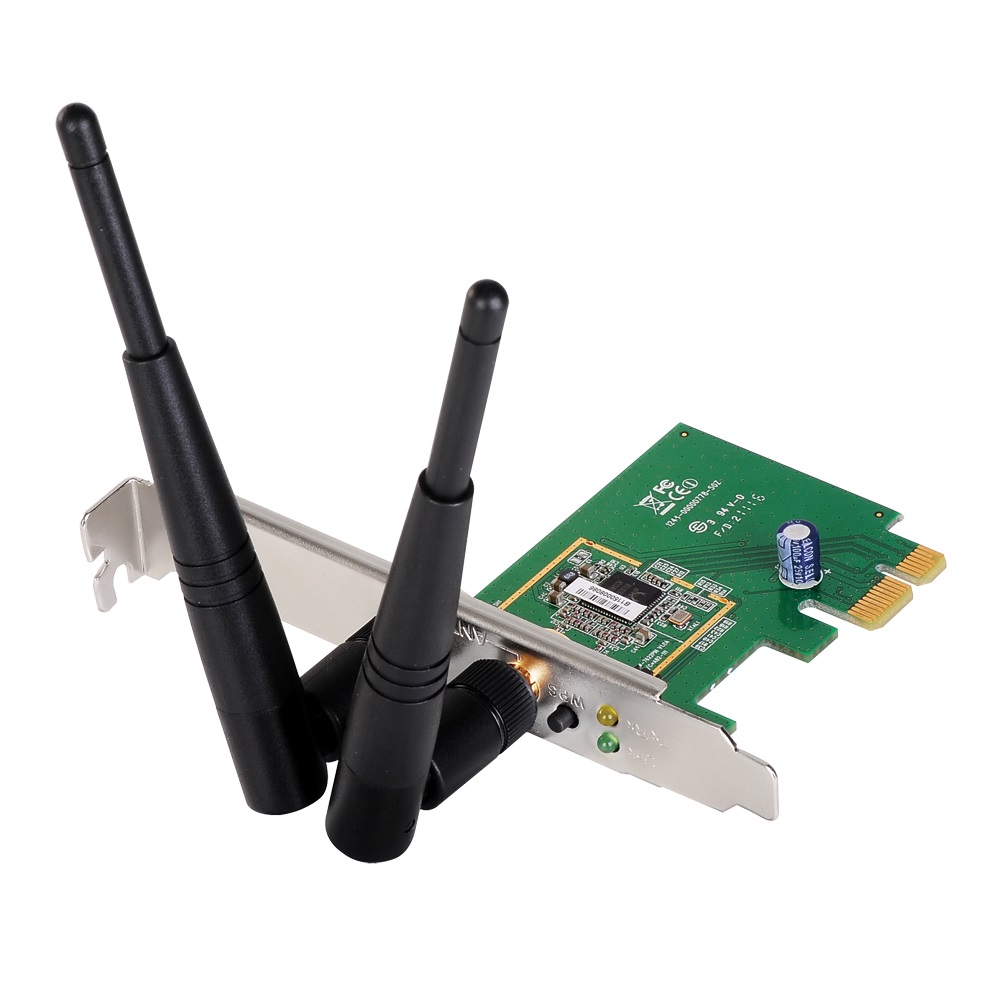

Edimax EW-7612PIn V2 N300 Wireless PCI Express Adapter 300MBps 802.11b/g/n, WPS, With Low Profile Bracket for Small Computers



SKU: EW-7612PIn V2 Category:


Edimax N300 Wireless PCI Express Adapter 300MBps 802.11b/g/n
· Complies with 802.11b/g/n wireless standards
· Wireless data rates up to 300MBps
· Features EZmax multi-language setup wizard
· Wireless speed up to 12 times faster and coverage 5 times further
· Features a hardware WPS (Wi-Fi Protected Setup) button
· Includes a low-profile bracket for small computers

The Edimax EW-7612PIn V2 allows for increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7612PIn V2 complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300MBps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.

1 x PCI Express interface
1 x Link LED
1 x Tx/Rx LED
1 x Hardware WPS button
2 x RP-SMA connector
2 x High-gain 3dBi detachable antenna
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Data Rates
11b: 1/2/5.5/11MBps
11n (20MHz): MCS0-15 (up to 144MBps)
11n (40MHz): MCS0-15 (up to 300MBps)

Frequency Band
2.4000 to 2.4835GHz
(Industrial Scientific Medical Band)
Output Power
11g: 12dBm±1.5dBm
11b: 16dBm±1.5dBm

Wireless Security
64/128-bit WEP, WPA, WPA2 & IEEE 802.1x
Hardware & Software WPS configuration

System Requirements

22 x 121 x 88 mm (without antenna)
