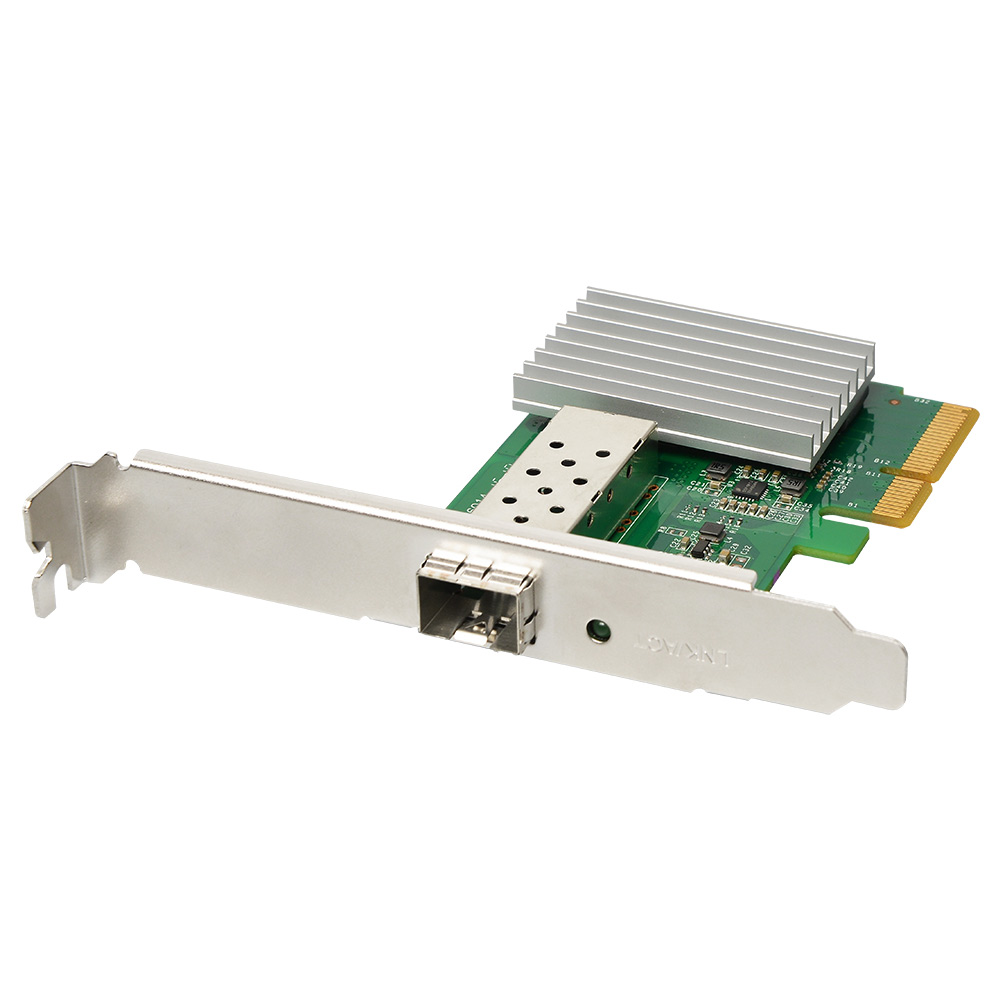

Edimax EN-9320SFP+ 10 Gigabit Ethernet SFP+ PCI Express Server Adapter, 16K JuMBo Frames, IP, TCP, UDP Checksum Offloading, With Low Profile Bracket

Description

Edimax EN-9320SFP+ 10 Gigabit Ethernet SFP+ PCI Express Server Adapter

PCI Express rev. 2.0 Specification x4 interface
Converts a PCIe slot into an SFP+ fiber slot
Compatible with standard SFP+ modules
16K juMBo frames
IP, TCP, UDP checksum offloading
Reduced CPU utilization and improved through
Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS
Low profile bracket included

Attachment Interface PCI Express Rev. 2.0 Specification x4 Interface
Media Interface SFP+ Connector
Optical Module Options LR, SR
JuMBo Frame 16K Bytes
LED Indicators ​ LNK / ACT Per Port
Typical Power Consumption 4 Watts

HARDWARE
Attachment Interface PCI Express Rev. 2.0 Specification x4 Interface
Media Interface SFP+ Connector
Optical Module Options LR, SR
JuMBo Frame 16K Bytes
LED Indicators ​ LNK / ACT Per Port
Typical Power Consumption 4 Watts
SOFTWARE
OS Compatibility Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016
Windows 10, Windows 8.1, Windows 7 (32/64-bit)
Linux 4.x, 3.x, Linux 2.6.x (32/64-bit)
Mac OS X 10.10.X (Yosemite)
Mac OS X 10.11.x (EL Captain)
MAC OS Sierra (10.12.x)
VMware ESXi 6.0, 5.5, 5.1
Microsoft Hyper-V
Linux KVM
Oracle VirtualBox
ENVIRONMENT
Temperature Operating: 0 – 50 ℃
Storage: -40 – 85℃
Humidity (Non-condensing) Operating: 5 – 95%
Storage: 5 – 95%
Physical Characteristics
Dimensions (W x D) 82 x 62 mm
Weight 65g
Standards Compliance
Standards and Protocols IEEE 802.3ae: 10GBps Ethernet
IEEE 802.3x: Flow Control and Back Pressure
IEEE 802.2ad: Link Aggregation
IEEE 802.1Q VLAN support
RFC2819 RMON MIB statistics
Certifications FCC, CE
